Motion Design in UI Prototypes: Purpose, Behavior and Handoff

Motion design in an interface explains change over time: where a panel came from, which item moved, or whether an action is still processing. Use motion when it communicates something useful, and compare it with a direct state change. This guide follows a notification-panel example from purpose and tool choice to review and implementation notes.

Interface motion uses transitions and animation to communicate relationships, feedback or continuity. Its usefulness depends on the task. A panel entering beside its trigger may explain where it belongs; an unrelated flourish may interrupt the same task.

Describe the information the motion carries. A loading indicator communicates that work is pending, but it must not imply progress the system cannot measure. A hover effect can suggest a control’s response on a pointer device, but it cannot be the only indication that an action is available.

The applications of motion design in prototypes span a wide spectrum:

• Micro-interactions: state changes in controls, such as selection or disclosure.
• Transitions: a relationship between two interface states or locations.
• Content changes: insertion, removal or reordering, with a clear explanation of what changed.
• Brand expression: a secondary consideration that should not obscure information or the task.

A prototype can make proposed timing and movement discussable. It does not pre-validate usability or performance. Review the motion with the content and alternative states that the real task needs.

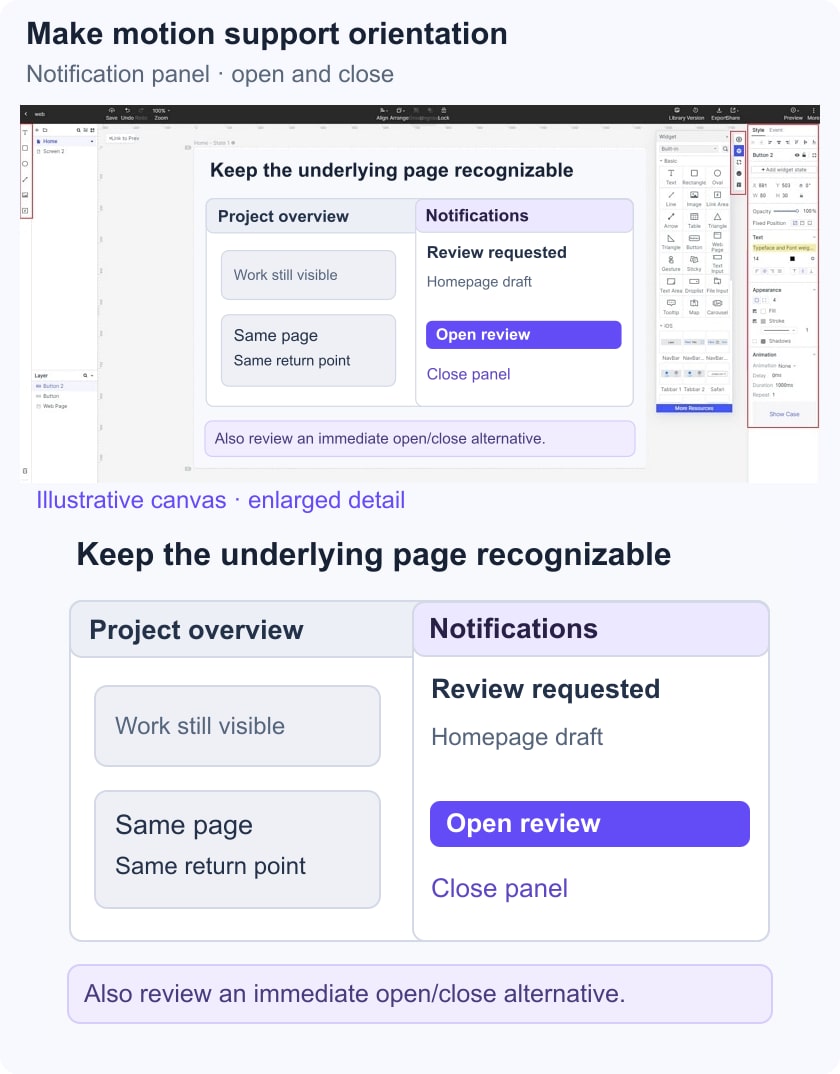

For the worked example, a notification panel opens from a toolbar, lets someone inspect an alert and returns them to the page. The question is whether the person understands the panel’s relationship to the page and can dismiss it without losing context.

Different tools serve different outputs. After Effects is suited to motion composition, Principle focuses on interactive animation prototypes, Figma supports design/prototype workflows, and Framer focuses on building and publishing websites. A rendered video, an interactive demonstration and a production website are different deliverables. Mockitt can demonstrate supported prototype transitions; do not assume it replaces every specialist animation workflow.

Consider the following when choosing motion design software:

• Creation: can you express the state change you need without unnecessary complexity?
• Review: can others inspect the intended version and give specific feedback?
• Context: can you demonstrate the relevant viewport and input method?
• Handoff: can you document the trigger, start/end states and behavior that implementation needs?

For a Mockitt prototype, check the following in the current editor:

• The screens or widget states needed for the transition.
• The transition options available for the selected interaction.
• The supported trigger that matches the intended action.
• The review link and participant-access settings.
• The actual preview behavior in each intended review context.

Choose based on the question and the output. A prototype is a communication artifact, not a guarantee that the production animation will have the same performance or accessibility behavior.

Use the notification-panel task to define a small, complete sequence: closed panel, open panel, selected alert and dismissed panel. Keep the underlying page recognizable so the transition has a clear reference point.

Step 1: Prepare the States

Create the required states in Mockitt. Use a fictional project alert, such as “Review notes available,” and keep the toolbar trigger in the same place. A device preset sets a canvas context; it does not automatically optimize motion for that device.

Step 2: Choose a Transition With a Purpose

• Identify the element that changes and what should remain stable.
• Use the current interaction controls described in the Mockitt interaction guide; confirm the options available for the selected state.
• Choose a supported transition that communicates the panel’s entry, or use a direct state change when movement adds no useful information.
• Record the intended duration and easing as design decisions where applicable; unsupported settings belong in annotations, not invented editor controls.

Step 3: Define the Trigger and Dismissal

• Connect the toolbar action to the open-panel state using the appropriate supported trigger.
• Provide an explicit close action and describe the intended Escape-key and focus-return behavior for implementation.
• Keep dismissal and return behavior consistent, and avoid making a hover gesture the only way to reach important content.

Step 4: Preview the Relevant Contexts

• Open the prepared wide and narrow versions in their intended review contexts.
• Check whether the panel obscures essential information or pushes the main action out of reach.
• Review an immediate-change alternative alongside the animated version, without changing the content or task.

Step 5: Share a Specific Review Task

• Share the reviewed version with appropriate access.
• Ask someone to open the alert, explain where it belongs and return to the underlying page.
• Record confusion, lost context and difficulty dismissing the panel separately from visual preference.

Best Practices:

• Use motion selectively; smaller movement is not automatically harmless or useful.
• Keep similar state changes consistent unless the task requires a deliberate difference.
• Prioritize content and control clarity before decorative expression.

The review should produce a decision about the panel behavior and a record of unresolved questions. Do not label a preference for one animation as proof that it improves task performance.

Feedback must remain understandable without motion alone. For example, an invalid field needs an explicit error message and a way to correct it; shaking the field is not an adequate explanation by itself.

Balancing Motion and Performance

Prototype smoothness and production performance are separate. The implemented page must be measured in its intended browsers and devices. Google’s animation performance guide discusses how implementation choices affect rendering work; changing a prototype’s speed does not resolve those implementation issues.

• Document which elements move and which remain stable.
• Avoid unnecessary simultaneous movement and specify when repeated animation stops.
• Test the implemented behavior under realistic conditions rather than inferring performance from a design preview.

Accessibility Considerations

Provide a motion-reduced alternative when movement is not essential. WCAG’s Animation from Interactions criterion addresses disabling nonessential interaction-triggered motion at Level AAA. It is one criterion, not a complete accessibility audit.

• For the notification panel, specify a direct appearance/disappearance alternative that preserves the same content and actions.
• Document keyboard access, focus movement and focus return for implementation; a visual annotation does not itself implement them.

Assets and Shared Review Content

Use assets you are permitted to use and fictional information in shared demonstrations. Confirm access settings for the review audience. An animation tool or a sharing link does not by itself establish security, privacy-law compliance or appropriate handling of sensitive data.

Keep those responsibilities separate from the motion proposal so neither is overlooked.

Larger projects need consistent motion decisions and clear ownership. Keep the reviewed states, behavior notes and implementation questions together.

Handoff Across Tools and Viewports

• Describe the effect in terms of behavior rather than assuming that an exported prototype supplies production animation code.
• Record any differences between the narrow and wide versions; do not promise identical motion on every device.

Team Review Workflow

• Invite design, engineering and research perspectives relevant to the question.
• Attach feedback to a version and state. Comments can clarify a decision, but they do not remove every possible misunderstanding.

Brand Expression

• Motion may contribute to a brand’s tone when it remains appropriate to the task.
• Keep a functional alternative when a decorative movement is removed.

Practical Tips:

• Name the motion’s purpose before choosing its effect.
• Reuse a documented pattern where the behavior is genuinely the same.
• Observe the relevant task with intended users when the question calls for research.

Treat the outcome as a design decision with evidence and limits, not a universal promise of engagement.

A concise handoff can include the following:

• Trigger: open the panel from the notification control.
• States: closed, open, alert selected and dismissed.
• Continuity: preserve the underlying page and return location.
• Alternative: remove nonessential motion while retaining content and controls.
• Implementation checks: keyboard behavior, focus, performance and applicable accessibility requirements.

Record which decisions were reviewed and which still need implementation verification. This makes the prototype useful without presenting it as a compliance or performance certificate.

Use motion when its informational value justifies it. In the panel example, the team should be able to explain what movement clarifies and what remains understandable without it.

Keep the selected behavior, immediate-change alternative and review observations together. Pass explicit requirements to the implementation team and verify the real result afterward.
