Responsive Web Design: Plan Layouts, Prototype States and Verify the Build

Responsive web design adapts content and layout to available space and different interaction contexts. The goal is to keep the task usable as the viewport changes, not simply shrink a desktop screen. A prototype can describe intended layouts; the implemented website must demonstrate that the rules actually work.

This guide follows a fictional community resource directory. A visitor filters resources, compares opening hours and opens details. We will plan narrow and wide versions, identify what changes between them, and define what needs to be checked in the real browser.

Responsive design lets the same website accommodate different viewport sizes and content conditions. A layout that fits a screenshot can still fail with zoom, a long label, a small window or a different input method. Treat those conditions as design inputs.

At implementation level, responsive design commonly uses flexible layouts, flexible media and CSS conditions such as media queries. MDN’s responsive-design guide explains these mechanisms. Device categories alone are not enough: choose changes based on where content and controls stop working well.

Wireframes are one way to explore the structure before implementation. They are useful when the content hierarchy or change between layouts is unclear, but not every project must follow a fixed sketch-to-prototype sequence.

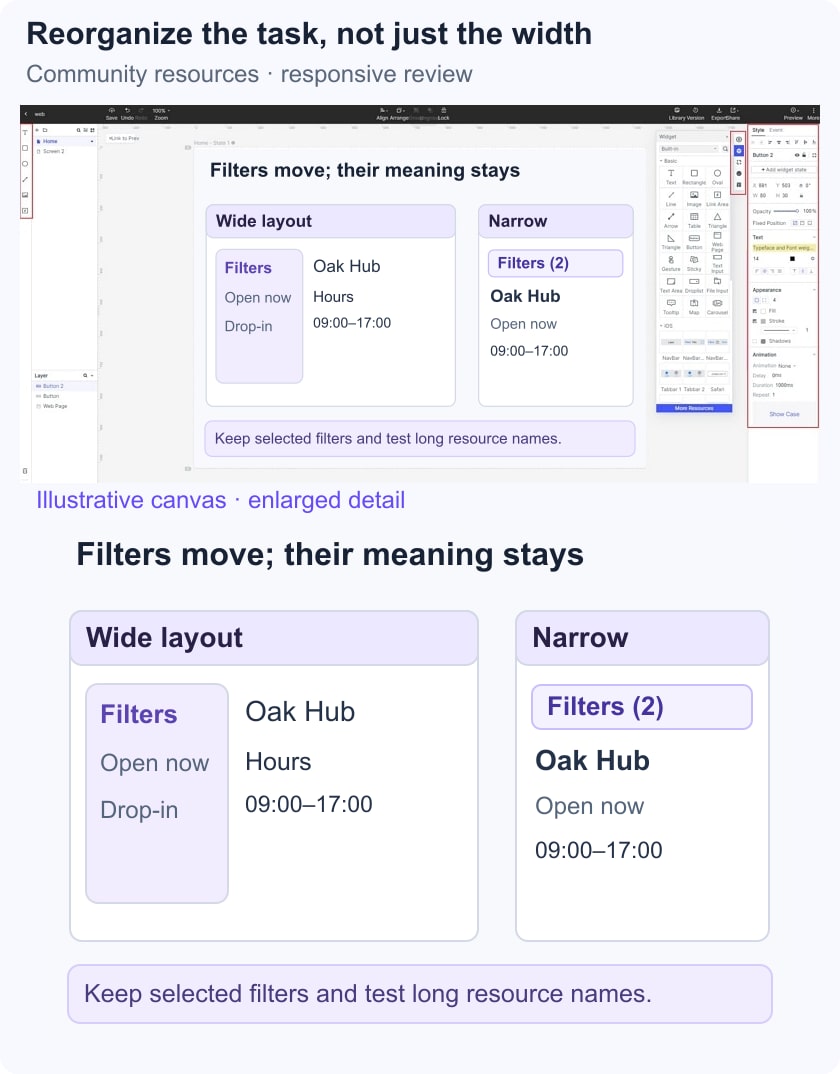

For the resource directory, place filters beside results in the wide layout. In the narrow layout, use a clearly labeled filter control and keep the selected criteria visible. The prototype should explain the change; separate canvases do not themselves create CSS rules.

Use Mockitt to arrange the directory content and compare proposed layouts. Prepare realistic fictional resource names, opening hours and an unavailable-hours value before choosing decorative treatment.

How to wireframe in Mockitt:

• Create wide and narrow review screens, naming them by viewport and state.
• Choose a relevant starting layout or blank canvas; remove modules unrelated to finding a resource.
• Add filters, result cards, opening hours and a route to resource details.
• Annotate the intended reflow, focus order and open/closed filter behavior.

Best Practices for Wireframes:

• Starting with limited space can expose priorities, but still review wider layouts instead of merely stretching them.
• Keep labels and content order meaningful at both sizes.
• Use alignment and consistent components to make comparison easier.

Add a long resource name, several active filters and an empty-result state. These reveal constraints that short placeholders conceal. The exercise produces layout decisions, not proof that every device is supported.

Connect enough states to review the directory task. The prototype should show what happens when filters open, criteria change, results are empty and a visitor returns from details.

Mockitt Step-by-Step Prototype Creation:

• Connect the relevant controls to their intended states in the editor, then preview the route.
• Keep the selected resource and criteria consistent across list and detail views.
• Simulate the necessary filter and result states with representative content; do not imply that the prototype queries a live directory.
• Inspect the prepared layouts at their intended sizes and annotate the rule between them. Test actual continuous resizing after implementation.
• Share the reviewed version and ask a visitor to find a resource open at the stated time, then explain the information they relied on.

Record whether important information disappears, controls become hard to find or the return route loses context. Separately specify keyboard and focus behavior for implementation. A clickable prototype does not establish WCAG conformance.

The production website needs browser-based performance and accessibility checks in addition to a visual review.

Performance Optimization Tips

• Serve appropriately sized images and preserve their aspect ratios; do not stretch a fixed thumbnail to fill an unrelated shape.
• Consider lazy loading for suitable off-screen images, while keeping important initial content discoverable and promptly loaded.
• Measure the implemented page with real diagnostics. A visual editor cannot identify every browser loading or rendering bottleneck.

Accessibility Checks

• Verify keyboard operation and a meaningful focus order in the implemented controls.
• Use meaningful text alternatives where needed and native HTML semantics before adding ARIA.
• Check zoom and reflow, including long content. WCAG’s reflow guidance explains the applicable criterion and exceptions; a narrow screenshot alone is not a complete test.

Content and Regional Variations

• Review longer labels, alternative date/time formats and different opening-hours conventions with the audience in mind.
• If the service requires consent or other notices, design their relevant states and obtain the appropriate policy review. A banner mockup does not establish legal compliance.

Visual Hierarchy Across Viewports

• Use spacing and text hierarchy that preserve readable groups instead of adding empty space by habit.
• Keep essential task information available in the narrow layout; removing it is not the same as making it responsive.
• Keep component treatment consistent while allowing arrangement and density to change where needed.

Carry these decisions into the implementation specification, then verify the real behavior. A prototype and the production page have different responsibilities.

Define the outcome the page should support. For the resource directory, success is finding a suitable resource and understanding its opening hours, not merely clicking the first prominent card.

Task-Focused Actions

• Place the filter and detail actions where their relationship to the content is clear.
• Use the prototype to observe the proposed route; do not claim conversion improvements without relevant measurement.

Content and Asset Choices

• Avoid unnecessary media and duplicated information, then measure the actual delivered page weight and loading behavior.
• Use only accurate, supported trust information. Do not add badges that imply audits or certifications the service has not obtained.

Implementation Handoff

• Describe how filters change position, how cards reflow and how long values wrap.
• Keep the reviewed version and unresolved decisions available to the implementation team.

A Practical Browser Review

• Resize between the designed widths and look for awkward intermediate states.
• Test relevant keyboard, zoom and assistive-technology behavior.
• Check regional content and approved notices in the contexts where they appear.
• Measure loading and responsiveness using the implemented page, including an uncached visit.
• Verify empty results, unavailable hours and return-from-detail states with realistic content.

For the directory, keep selected filters visible when the filter panel closes and preserve them on returning from a resource. State this as intended behavior and verify it after implementation; a link between two designed screens does not prove persistence.

The responsive deliverable should include example layouts, their changing relationships and the content conditions they must support. The resource-directory example makes those rules concrete through filters, results and details.

Use the prototype to resolve structure and task questions, then inspect the real website across sizes and input methods. Correct any mismatch between the specified rule and the browser behavior.

A concise review record should identify the issue, viewport, content condition and next action. For example: “The longest resource name pushes opening hours below the card action at narrow width; revise wrapping and recheck.”
