Android Dashboard Design: Layout Ideas and a Mobile Prototype Workflow

An Android dashboard brings the information needed for a task into one mobile view. It may summarize activity, schedules, messages, or operational status, but it does not need to display every available metric. Use a mobile dashboard prototype to decide what deserves the first screen, which details can wait, and what happens when data is unavailable. A desktop dashboard can provide ideas, but shrinking it is not an Android layout strategy.

Five Dashboard Layout Ideas to Adapt

The retained examples below are older dashboard references, mostly designed for larger displays. They illustrate grouping, emphasis, and navigation rather than verified Android implementations. Adapt the useful relationship to the mobile task. Android’s layout guidance recommends considering different screen sizes and orientation, device safe areas, consistent spacing, and reachable essential interactions.

1. Dashboard for Employees and Customers

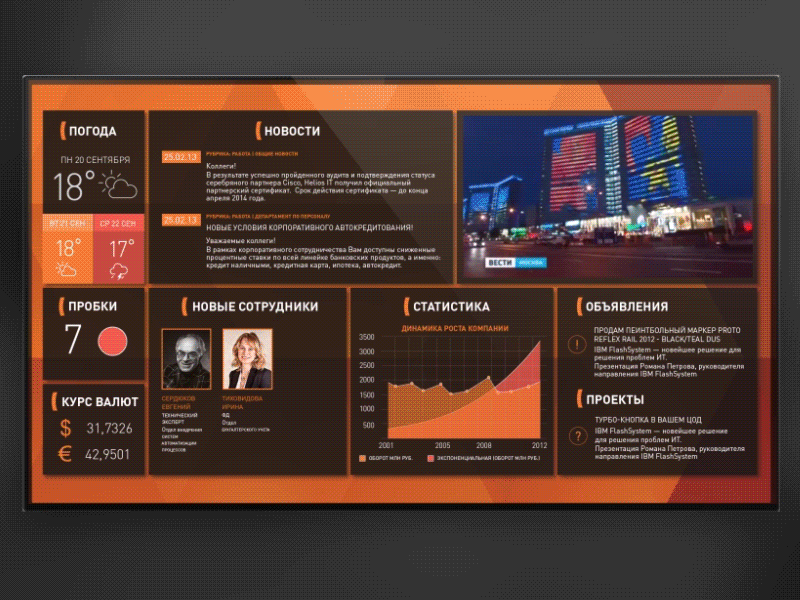

This employee-information board groups weather, news, traffic, staff, and statistics in a dense grid. Its useful idea is grouping related information into recognizable areas. On a phone, choose the items relevant to the person’s immediate task rather than reproducing every panel. The animation is a visual concept; it does not verify live data or a working backend.

For example, an employee mobile overview might prioritize today’s shift and an important announcement, leaving broader statistics behind a detail link. Keep the heading and last-updated context visible when information can change.

2. VMWare Dashboard Exploration

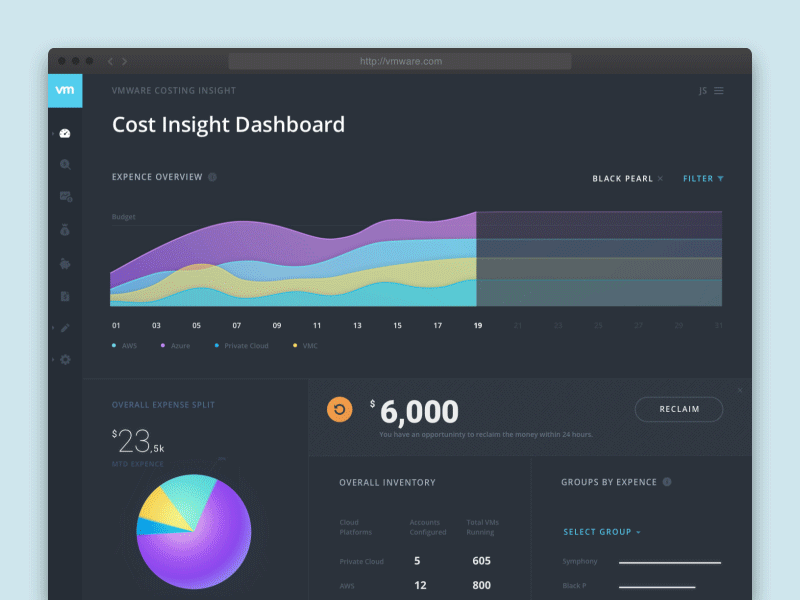

This VMware cost dashboard uses a large trend chart above smaller cost and inventory summaries. Study the hierarchy, not an assumed import or analytics feature. For a phone, show the main cost question first and let the person open a detailed chart when needed. Label the selected period and unit so a change in scale does not mislead the comparison.

3. Dashboard UI Interaction

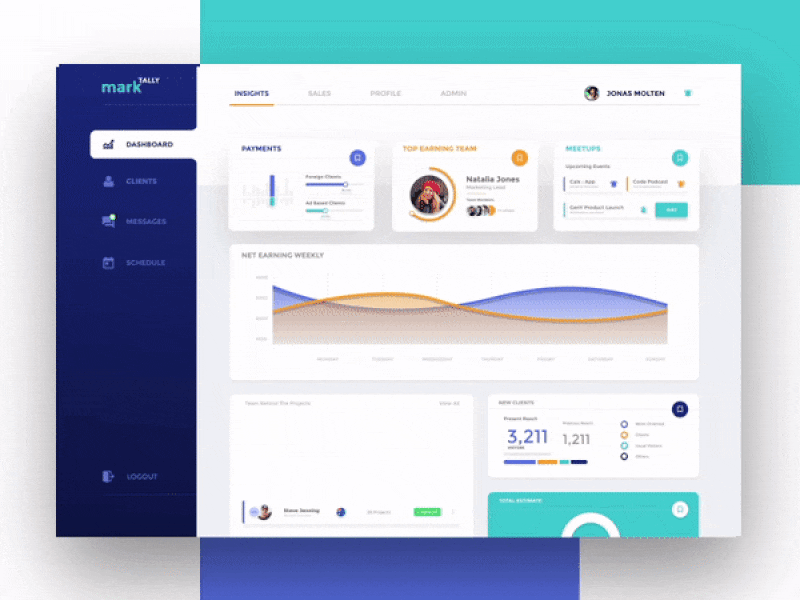

The interaction concept combines a sidebar, summary cards, a trend chart, and supporting panels. Its lesson is to preserve context when a selection changes the content. On mobile, a visible filter label and a clear return path can communicate more than a decorative transition.

Decide which user action each transition explains. A person should still understand the selected period or record if the animation is reduced or absent. Keep the content and state change meaningful without relying on motion to carry the entire explanation.

4. Adapt a Content Grid to a Small Screen

A photo or content-management dashboard can use a grid to help people recognize items. On a narrow Android screen, give each item enough space for its thumbnail and label, then open details when selected.

Keep selection visible, distinguish a tap that opens an item from an action that selects it, and provide a clear way to leave selection mode. Do not assume that a compact grid is usable merely because it fits the viewport.

5. Dashboard Design

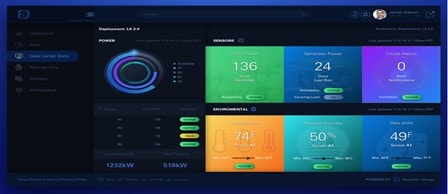

The dark dashboard uses colored blocks to separate information groups. For an Android adaptation, maintain readable text, visible labels, and a consistent meaning for each state. A bright tile can emphasize an item, but color alone should not explain whether a system is healthy, offline, or requires attention.

---

How to Make Android Dashboard UI Design

Mockitt provides UI components and connected screens for exploring a dashboard before implementation. Use a phone-sized canvas and build only the cards, navigation, and states needed for the chosen task. Reuse consistent components so a repeated status or action does not change meaning between screens.

Arrange editable components or import relevant visual assets, then connect the actions that a reviewer needs to follow. A link area can make a visual region interactive, but the prototype still needs readable labels and a clear action. It does not retrieve live Android application data.

Preview the flow with the intended device size and share the prototype link for review. An offline demo package can support a presentation where available; it is a prototype presentation, not a deployed Android application.

For handoff, provide the reviewed screen states, dimensions, content, and interaction notes. Developers still need to implement the data sources, native behaviour, accessibility semantics, and error handling. An image or exported style does not establish that work.

The browser workspace allows the team to collaborate on the same project and collect comments. Share access deliberately so reviewers can inspect the relevant flow without confusing a draft with the approved version.

Use the prototype review to resolve design questions, such as which card appears first or how unavailable data is explained. Security architecture, account permissions, encryption, and service reliability require their own current evidence and implementation review.

Choose one mobile decision to prototype

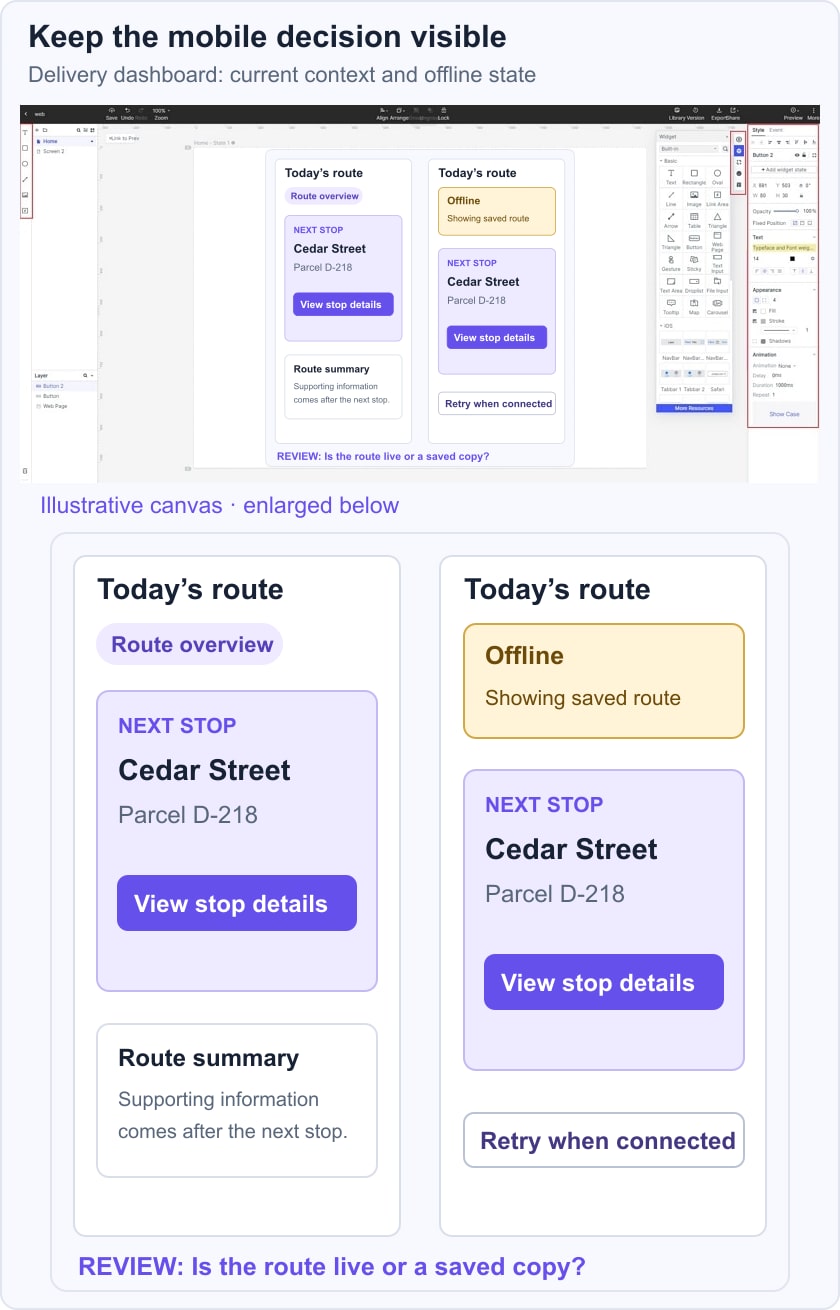

For an illustrative delivery dashboard, make the next stop the primary card: “Cedar Street,” parcel D-218, and “View stop details.” Keep less urgent route summaries below it. Add an offline state that says “Showing saved route” and offers a retry action, while preserving the saved next-stop information.

Ask the reviewer to identify the next stop and explain whether the information is current. If they interpret the offline screen as a live update, make the message more explicit. Connect the card to stop details and provide a return path that preserves the selected route. This example reviews information hierarchy and state communication; it does not simulate location tracking or prove offline synchronization.

---

Steps on Making Android Dashboard UI Design

Step 1: Create a New Project

Choose an Android-sized mobile canvas, then review the task at other relevant screen sizes. The retained guide images show earlier Mockitt project and editor controls; their placement may differ in the current workspace.

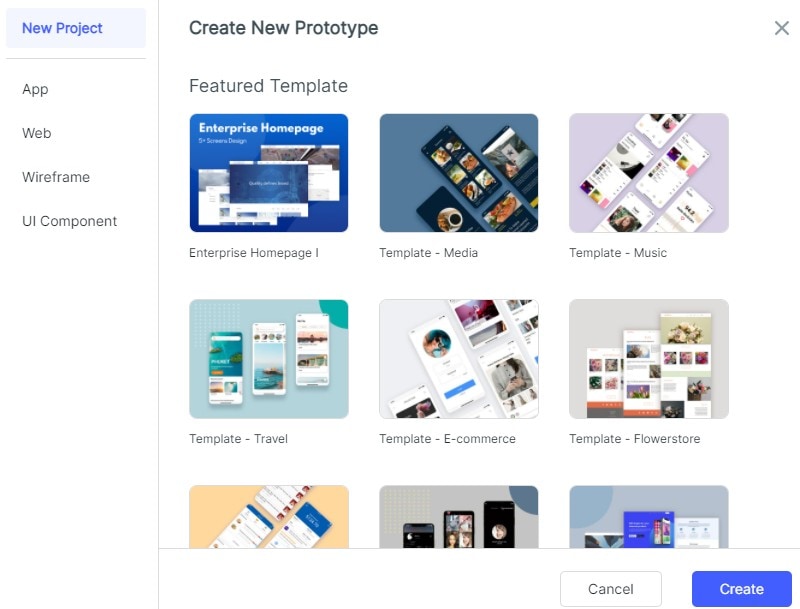

Create a prototype project, select an appropriate device size, and name it for the task, such as “Delivery: next stop and offline state.” A template can provide a starting layout, but replace its sample content with the information the person actually needs.

Step 2: Design the Dashboard

• Add Widgets and Icons

Add the necessary components from the available library to the canvas. For the delivery example, begin with the next-stop card, its label, a detail action, and the route status. Avoid adding charts simply because the library contains them.

Select a component and edit its properties. Check that the label remains readable and that the whole intended touch area corresponds to the action.

Save or reuse components where the same card, label, or navigation pattern appears again. Keep repeated elements consistent instead of recreating them independently for every state.

• Add Links between Screens

1. Choose the component, create a link, and set the action and target screen or state in the interaction controls.
2. Where supported, drag the component’s link control to the target screen, then inspect its settings. Check the return path as well as the forward transition.

To reuse a shared component in the earlier guide interface:

1. Create a reusable master from the selected widget.
2. Place instances of that master from the library where the same pattern is needed.
3. Edit the master when a change should apply to the shared pattern; review the affected instances afterward.

• To explain a design decision:

1. Add a note using the available annotation or sticky component.
2. Describe the behaviour or unresolved question, such as whether the saved route needs an age indicator.
3. Check whether the note should appear in the review view or remain an internal design annotation.

Represent meaningful dashboard states

Use screen or component states to show differences such as loaded, loading, unavailable, and offline. A whole-screen state can change the overall view; a component state can change one card without replacing the rest. Choose the scope that matches the task rather than adding animation for its own sake.

• To represent a changing component:

1. Create or select the component whose state needs to change.
2. Add distinct states and give them meaningful names, such as saved route and refreshing.
3. Link the relevant action to the target state and preview the result. Make sure an interrupted or failed refresh has an understandable destination.

Step 3: Preview the Dashboard

To preview on a computer:

• Open the preview from the editor toolbar.
• Review scrolling, highlighted interactions, and the device frame where those options are available.
• Use a larger presentation view if useful, then return to the intended device size to judge readability.

To review on a phone:

• Use Share to obtain the project’s review link or QR code.
• Open the link on the phone and follow the task. Check that the status text, action, and return route are understandable without coaching.

For an offline presentation, use the available demo-package option and check it before the review.

• Download the supported HTML demo package where available, unpack it, and open its entry file in a compatible browser. Confirm the intended prototype screens work without assuming live data access.

Step 4: Share the Dashboard Design

1. Generate a review link using the project’s sharing controls.
2. Send the link or QR code together with the task you want the reviewer to attempt.
3. Choose access settings appropriate to the audience and review version.
4. If an offline package is needed, test that copy separately and label the version so it is not confused with a later revision.
